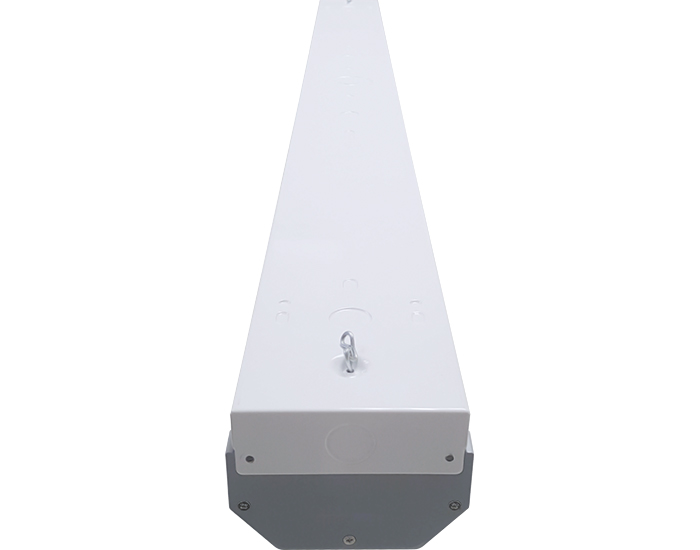

The Linear LED Luminaire 35W is a new generation of upscale design, high-end performance, undeniable value and offers a maximum light output, exceptional illumination, and excellent energy savings. Linear LED Luminaire 35W is designed with proprietary optics that deliver maximum lumens and conceal the LED light sources behind the lens to create a pleasing illuminance with soft blended beam edges and delivers up to 4,700 lumens with a high efficacy of 130+ lumens per watt & exceptional ≥85 CRI . Easy installation saves time and labor cost, providing a virtually maintenance-free service. This strikingly beautiful luminaire combines brilliant aesthetics with space-filling light, all contained within a non-corrosive premium-quality aluminium & shatter-resistant polycarbonate lens. With 0 - 10V dimming, makes this Linear LED Luminaire perfect for applications such as office, classroom, healthcare facility, food processing facility, retail store, parking structure and more.
Features
- cULus, LightingFacts, DLC Premium, FCC, NSF
- Available with Emergency Battery & Ballast
- Suspended and Surface Mount
- 0~10V Dimmable / 100~277VAC Universal Voltage
- 5-Year Limited Warranty
- In Stock! Usually Ships in 24 to 48 Hours
National Sanitation Foundation (NSF) Certified & Rated Lighting Solutions for Food Processing Environments.
NSF International Standard establishes minimum food protection and sanitation requirements for the materials, design, fabrication, construction, and performance of food handling and processing equipment.
| Model Number | TLN4FAP1 | TLN4FAP2 | TLN4FAP3 |
| Power Consumption | 35 W | ||
| Correlated Color Temperature | 5000 K | 4000 K | 3500 K |
| Total Luminous Flux | 4,900 lm | 4,670 lm | 4,590 lm |
| Luminous Efficacy | 139 lm/W | 132 lm/W | 130 lm/W |
| Color Rendering Index | ≥85 Ra | ||
| Input Voltage | 100 ~ 277 VAC | ||
| Input Frequency | 50 ~ 60 Hz | ||
| Beam Angle | 120 ° | ||
| Operating Temperature | -20 ~ 50 °C / -4 ~ 122 °F | ||
| Average Lifespan Hours | ≥50,000 hrs @L70 | ||
| Dimming | 0 – 10 V Dimmable | ||
| Lighting Control | Default: None Optional: on/off Occupancy Sensor or Bi-level Occupancy Sensor |
||
| Emergency Battery | Default: None Optional: Emergency Battery & Ballast |
||
| Mounting | Pendant, Surface | ||
| Green Technology | Mercury-free, UV-free, RoHS Compliant | ||
| IESNA LM-79 & LM-80 | Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 | ||
| Certification | cULus, LightingFacts, DLC, FCC, NSF | ||
| DLC Category | Direct Linear Ambient Luminaires | ||
| Dimension | 1200 x 108 x 85 mm / 47.24” x 4.29” x 3.34” | ||
| Weight | 3.5 kg / 7.71 lb | ||
| Warranty | 5-year Limited Warranty | ||
