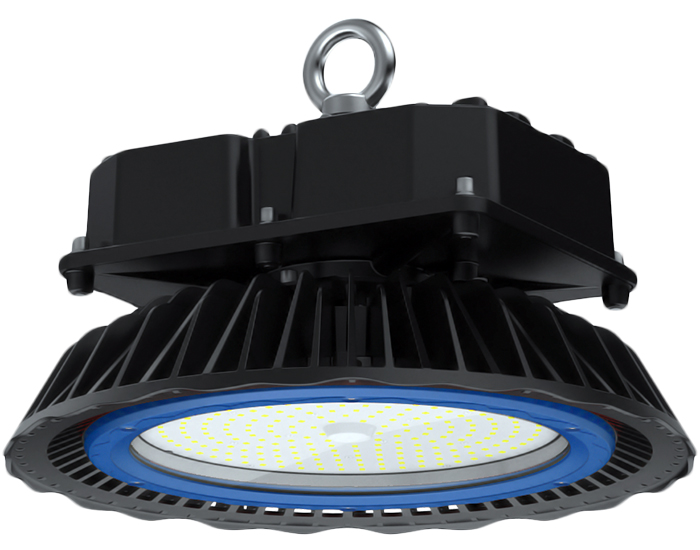

The AHB LED High Bay is specifically designed to outperform its competitions with Efficacy from 120 lm/W & up to 150 lm/W. With various beam angles and optical distribution patterns available, this LED High Bay offers exceptional lighting in low to high ceiling applications and delivers the best luminous performance. The rugged construction of AHB LED High Bay is resistant to shock and vibrations, ensures long-life and safe operation. With IP65 rating, this durable LED High Bay is ideal for both indoor & outdoor as well as the commercial & industrial facilities
This strikingly beautiful luminaire combines brilliant aesthetics with space-filling light, all contained within a non-corrosive premium-quality aluminium & shatter-resistant polycarbonate lens.
With its unique upscale design, high-end performance, undeniable value and offers a maximum light output, exceptional illumination, and excellent energy savings. Easy installation saves time and labor cost, providing a virtually maintenance-free service.
Features
- cULus, LightingFacts, DLC, FCC
- Available Wattage: 100W, 120W, 150W, 200W, 240W, 300W
- Reimagines LED Lighting w/ Multiple Mounting Options
- 100~277VAC Universal Voltage / 0-10V Dimmable
- IP65 Rated: Protected Against Moisture & Environmental Contaminants
- 5-year Limited Warranty
| Power Consumption | 100 W | 120 W | 150 W | 200 W | 240 W | 300 W |
| Total Luminous Flux | 13,000 lm | 15,600 lm | 19,500 lm | 26,000 lm | 32,000 lm | 40,000 lm |
| Luminous Efficacy | Default: 125 lm/W ~ 130 lm/W / Optional: up to 150 lm/W | |||||
| Dimension | 15.07″ x 7.59″ | 15.07″ x 7.99″ | 15.07″ x 10.11″ | |||
| Weight | 14.77 lb | 16.09 lb | 19.84 lb | |||
| Input Voltage | 100 ~ 277 VAC (Optional: 277 ~ 480 VAC) | |||||
| Output Voltage | 28.8 ~ 48 VDC | |||||
| Color Temperature | Default: 5000 K / Optional: 4000 K | |||||
| Color Rendering Index | ≥73 Ra | |||||
| Dimming | 0 – 10 V Dimmable | |||||
| Ingress Protection Code | IP65 | |||||
| Average Lifespan | 50,000 hrs | |||||
| Storage Temperature | -40 ~ 70 °C / -40 ~ 158 °F | |||||
| Operating Temperature | -30 ~ 50 °C / -22 ~ 122 °F | |||||
| Luminaire Material | Aluminum Alloy, Tempered Glass | |||||
| Luminaire Color | Default: Black / Optional: Grey, White | |||||
| Bezel Color | Default: Black / Optional: Blue, Grey, Red, White, Yellow | |||||
| Mounting | Default: Chain Mount / Optional: Ceiling Mount, Stem Mount, Wall Mount | |||||
| Certification | cULus, LightingFacts, DLC, FCC, CE, SAA | |||||
| DLC Category | High-Bay Luminaires for Commercial and Industrial Buildings | |||||
| Optional Lens | – Clear Tempered Glass – Frosted Tempered Glass |
|||||
| Optional Lighting Control | – Microwave Occupancy Sensor (12 m / 39.37 ft.) (IP30) – Daylight Sensor (IP30) – Microwave Occupancy Sensor + Daylight Sensor (IP30) |
|||||
| Optional Mounting Accessories | – Non-Adjustable Surface Mount Bracket – ±45 Degree Adjustable Surface Mount Bracket – ±180 Degree Adjustable Surface Mount Bracket |
|||||
| Optional Emergency Battery | – Emergency Battery + Ballast (3 Hours / 10W / 1600 lm) | |||||
