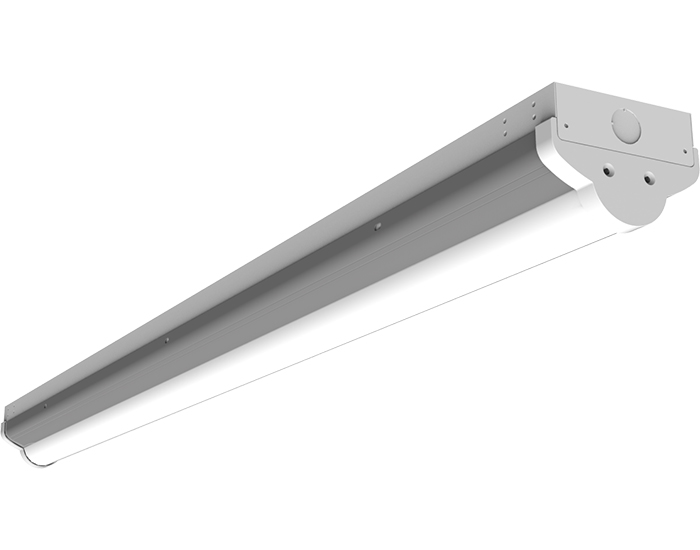

Linear LED Luminaire 25W 2017-01-12T15:54:40+00:00

The Linear LED Luminaire 25W is a new generation of upscale design, high-end performance, undeniable value and offers a maximum light output, exceptional illumination, and excellent energy savings. Linear LED Luminaire 25W is designed with proprietary optics that deliver maximum lumens and conceal the LED light sources behind the lens to create a pleasing illuminance with soft blended beam edges and delivers up to 3,000 lumens with an outstanding efficacy of 120 lumens per watt & exceptional ≥85 CRI . Easy installation saves time and labor cost, providing a virtually maintenance-free service. This strikingly beautiful luminaire combines brilliant aesthetics with space-filling light, all contained within a non-corrosive premium-quality aluminium & shatter-resistant polycarbonate lens. With 0 - 10V dimming, makes this Linear LED Luminaire perfect for applications such as office, classroom, healthcare facility, food processing facility, retail store, parking structure and more.

Features
- cULus, LightingFacts, DLC, FCC, NSF
- Available with Emergency Battery & Ballast
- Pendant and Surface Mount
- 0~10V Dimmable / 100~277VAC Universal Voltage
- 5-Year Limited Warranty

Linear LED Luminaire 25W by PLIANT LED



National Sanitation Foundation (NSF) Certified & Rated Lighting Solutions for Food Processing Environments.
NSF International Standard establishes minimum food protection and sanitation requirements for the materials, design, fabrication, construction, and performance of food handling and processing equipment.

Model Number SLN4F25-4180N-I1 SLN4F25-5080N-I1
Power Consumption 25 W 25 W
Correlated Color Temperature 4000 K 5000 K
Total Luminous Flux 3,000 lm 3,000 lm
Luminous Efficacy 120 lm/W 120 lm/W
Color Rendering Index ≥84 Ra ≥86 Ra
Input Voltage 100 ~ 277 VAC
Input Frequency 50 ~ 60 Hz
Beam Angle 120 °
Operating Temperature -20 ~ 50 °C / -4 ~ 122 °F
Average Lifespan Hours ≥50,000 hrs @L70
Dimming 0 – 10 V Dimmable
Lighting Control Default: None
Optional: on/off Occupancy Sensor or Bi-level Occupancy Sensor
Emergency Battery Default: None
Optional: Emergency Battery & Ballast
Mounting Pendant, Surface
Green Technology Mercury-free, UV-free, RoHS Compliant
IESNA LM-79 & LM-80 Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
Certification cULus, LightingFacts, DLC, FCC, NSF
DLC Category Direct Linear Ambient Luminaires
Dimension 1200 x 108 x 85 mm / 47.24” x 4.29” x 3.34”
Weight 3 kg / 6.6 lb
Warranty 5-year Limited Warranty

PLIANT Linear LED Luminaire 25W, SLN4F25-4180N, BLN4F36-5080N
